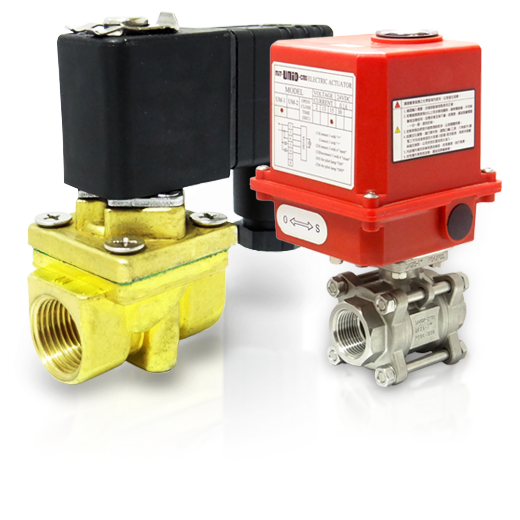

Ball Valve

High Pressure Ball Valves

  • 2000 psi working pressure
  • SUS 304 or Alloy copper
  • TWO Pieces or THREE Piece Ball valves
  • Lockable
  • Applicable to Electrical Actuators or solenoid
  • Applicable to water, oil and gas
scroll down

Solenoid

High Pressure Ball Valves

Forge brass valve boy, applicable to water

Temperature℃ Working Pressure 0.3~  bar
#2 3.2E 4.3E 2 2E #3 #4 #3E
N.J.V N J.V N J.V AC DC AC DC AC DC AC DC AC DC
-5/60 -5/60 -5/100 -5/60 -5/145 10 10 16 15 16 16 - - - 16
14 13 16
12 10
9 10 8 14 13 16 16
8 5 8 5 12 10

Solenoid

Solenoid

Specification
Threaded Valve Socket Weld Valve 3-Port Zone Valve
1/2” - 3” 1/2” - 3” 1/2” - 3”

Enclosure:
IP67 rated waterproof and dustproof enclosure. The enclosure is made of Nylon which can resist against heat, acid, and alkali. Aluminum enclosure is optional.

Position Indicator:
All models have a constant mechanical position indicator on the top of the actuator cover to indicate the position of the valve. It can also be wired to the control box, and it will show the opening position via
