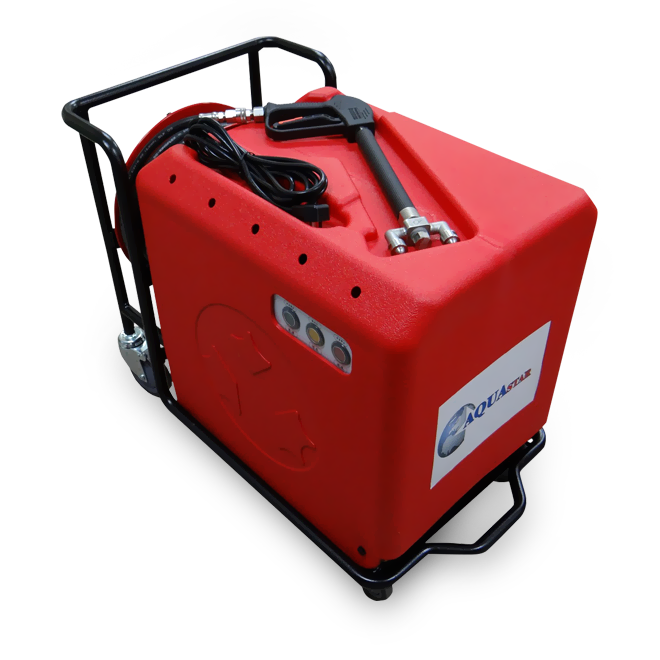

3&5 Motor Type Water Mist Equipment

CY TECH had done the R&D for water mist equipment and got many orders from FOXCONN, INNOLUX, NATIONAL PALACE MUSEUM, NTUH and historical buildings. We recommend to apply the water mist hose reel trolley to expand the fire protection area.

  • Feature
  • Specification
  • Testimony

User friendly

Owing to the delicate and elaborate design of the hose reel turntable and just 2.5kg recoil of the gun, any individuals is free and easy to take the gun for firefighting and put it the original place.
All of preparation and recovery of our equipment are pretty easy and quick than the traditional fire hydrant cabinet.



Dual spray mode

During the initial fire, use the inject spray nozzle to suppress the fire from distance. When the fire being smaller, switch to the water mist nozzle for firefighting and the fire is extinguished in seconds.
The CO2 and chemical extinguishers can’t put off fires in the top of a house or an area. But our equipment can do that application because of the momentum.
Not for fires of high places.



Without Electrical Induction

During power-on of circuit boxes, there is without electrical induction away from 60-centimeter because of high pressure water mist not continuous and the signal of the box is still flashing.



Washing & Sterilizing

The water mist firefighting equipment could also be used for cleaning, sterilizing and watering.
By using the equipment frequently, people are familiar with the operation or manipulation and are easy to use it when fires to prevent from missing the golden time of firefighting.



Model No. AQ-FT-312-A AQ-FT-315-B AQ-FT-520-A AQ-FT-522-B
Water Mist Gun Water Mist Nozzle*1 & High Pressure Jet Spray Nozzle*1 Water Mist Nozzle*1 & High Pressure Jet Spray Nozzle*1 Water Mist Nozzle*1 & High Pressure Jet Spray Nozzle*1 Water Mist Nozzle*1 & High Pressure Jet Spray Nozzle*1
Volume of the Foam Tank 4L 4L 4L 4L
Dimension 90*52*71cm 90*52*71cm 90*52*71cm 90*52*71cm
Weight 89kg 89kg 90kg 90kg
